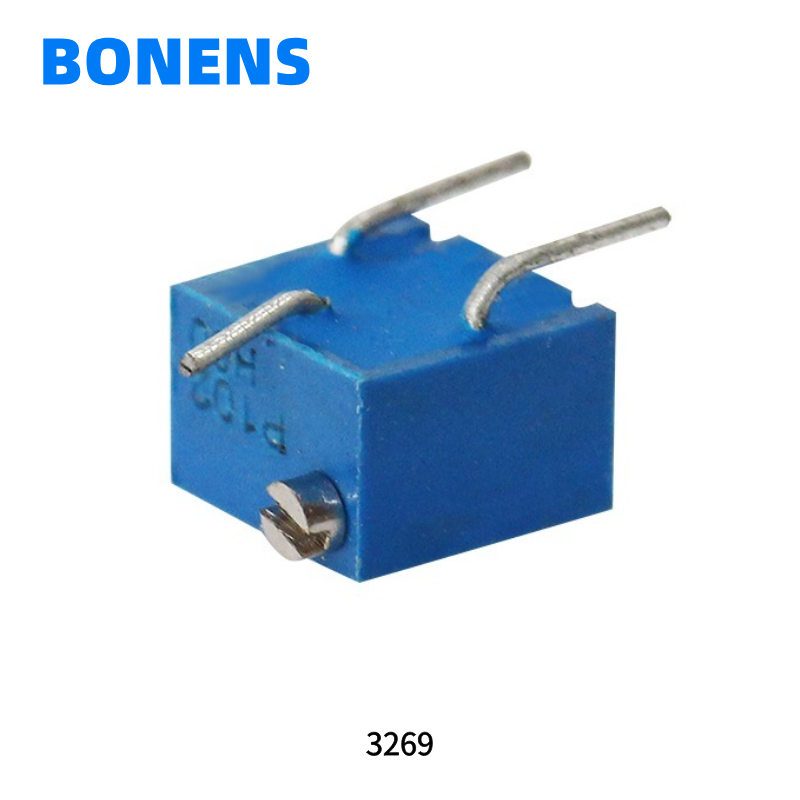

    BONENS Series 3269 SMD Variable Resistor Trimming Potentiometer

    Ask Lasest Price
    Brand Name : BONENS
    Model Number : 3269P
    Price : $0.25-$0.4
    Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram,
    Supply Ability : 1000/7 days, 5000/10 days 10000/14 days
    Delivery Time : 5-8 work days
    • Product Details
    • Company Profile

    BONENS Series 3269 SMD Variable Resistor Trimming Potentiometer

    3269P variable resistor potentiometer
    The 3269 series potentiometer is a type of potentiometer. It is usually composed of a resistive body and a rotating or sliding
    system, that is, a moving contact moves on the resistive body to obtain a partial voltage output.
    The function of the potentiometer is to adjust the voltage (including DC voltage and signal voltage) and the magnitude of the
    current.

    3269X variable resistor potentiometer

    3269 potentiometers are mainly used in instruments, meters, post and telecommunications, power equipment, railway signals,aviation, aerospace and other fields

    3269W variable resistor potentiometer

    Stable, infinite resolution cermet element
    Vertical and horizontal adjust styles
    Compatible with surface mount manufacturing processes
    RoHS compliant
    Product parameters
    lectrical Characteristics
    Range of nominal resistance
    10Ω~5MΩ
    Resistance tolerance
    ±10% ±5% (customization)
    Terminal resistance
    ≤±1%R or 2Ω
    Contact resistance variation (CRV)
    ≤±1%R or 3Ω
    Insulation resistance
    ≥ 1GΩ (100V AC)
    Withstand voltage
    600V (DC or AC peak value)
    Effective electrical travel
    12±2 cycles


    Environment Characteristics
    Rated power
    0.25W ( 200V max)
    Temperature range
    -55°C~+125°C
    Temperature Coefficient
    ±250, ±100ppm/°C
    Collision (390m/S2, 4000 times)
    ΔR≤±1%R
    Vibration (10-500HZ, 0.75mm, 6h)
    ΔR≤±1%R, ΔUab/Uac≤±2%R, Electrical break≤100μS
    Temperature variation (-55°C/30min,
    +125°C/30min, 5 cycles)
    ΔR≤±2%R,
    ΔUab/Uac≤±1%R
    Climate category (IEC68-2-2)
    ΔR≤± (3%R+0.1Ω),Insulation Resistance≥100MΩ
    Electrical endurance (0.5W, 1000h)
    ΔR≤± (3%R+0.1Ω),CRV≤±3%R or 5Ω
    Mechanical endurance (200 cycles)
    ΔR≤± (3%R+0.5Ω), CRV≤±3%R or 5Ω
    Steady damp heat (IEC68-2-3, Ca, 96h)
    ΔR≤± (3%R+0.1Ω), Insulation Resistance≥100MΩ
    Physical Characteristics
    Total mechanical travel
    12±2 cycles
    Starting torque
    ≤25mN.m
    Product size
    A: Replacement. If there are some defective items, we usually credit to our customer or replace in next shipment.
    Q5: How do you check all the goods in the production line?
    A: We have spot inspection and finished product inspection. We check the goods when they go into next step production procedure.
