High Power Ceramic RF Resistor 100W 50 Ohms with Wide Operating Temperature -55°C to +165°C and 0~2GHz Frequency Range

Product Description

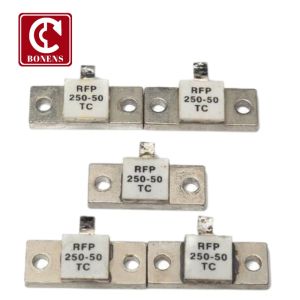

100W 150W 200W 250W 400W 800W 1000W 500W high power Terminals 10ohm 50ohm rf resistor picture
100W 150W 200W 250W 400W 800W 1000W 500W high power Terminals 10ohm 50ohm rf resistor drawing

All RF flange resistor can do with one terminal or Two terminals

100W one terminal resistor drawing
150W two terminals rf resistor drawing

250W 10ohm 50ohm two terminals rf resistor drawing

400W 10ohm 50ohm two terminals rf resistor drawing

500W 10ohm 50ohm one terminals rf resistor drawing

600w 10ohm 50ohm one terminals rf resistor drawing

800W 10ohm 50ohm two terminals rf resistor drawing

1000W 10ohm 50ohm One terminals rf resistor drawing

Specification
100W 150W 200W 250W 400W 800W 1000W 500W high power Terminals 10ohm 50ohm rf resistor Parameters
Electrical Characteristics
Range of nominal resistance
1 ~500Ω
Range of nominal resistance
±5%
Frequency range
0~2GHz
Standing wave ratio
1.2~1.3
Insulation resistance
≥ 1GΩ
Withstand voltage
500V/1 mm (Substrate thickness)
Environment Characteristics
Rated power
1~1200W (70°C)
Temperature range
-55°C~+165°C
TCR
±300×10-6/°C
Temperature shock (-55°C/+125°C, 3 times)
ΔR≤±5%R
Moisture proof (GJB306A-96-Method106)
ΔR≤±5%R
Vibration (10-500HZ, 0.75mm, 6h)
ΔR≤±3%R, No mechanical damage
Test at low temperature (-55°C, 24h)
ΔR≤±5%R
Load life (96)
ΔR≤±5%
Collision
ΔR≤±3%R
Physical Characteristics
Terminal strength(10N,5S)
No loose and fall off
Solderability(240℃,3s)
Tin layer covering area of 95%
